Aluminum rootop solar mounting structures clamps

From coastal cottages to high-rise warehouses, today’s rooftop solar arrays depend on a carefully orchestrated mix of Componnets For Solar PV Mounting Structures that marry Aluminum Alloy Profiles with Galvanized Steel Tubes, STEEL PROFILES, and precision STAINLESS PARTS. In every application, the clamps are the linchpin: they bite gently into panel frames without marring the anodized finish, while rubber gaskets isolate dissimilar metals to stop galvanic corrosion.

Key deployment scenarios

1. Low-slope commercial roofs

   Parallel rows of Galvanized Steel Tubes act as load-bearing purlins. ALUMINUM ALLOY PROFILES rails are then clipped to these tubes with adjustable clamps that incorporate STAINLESS PARTS hardware, allowing thermal expansion without loosening. The entire assembly is ballasted or mechanically anchored to STEEL PROFILES embedded in the roof deck, meeting the strictest uplift codes.

2. Residential shingle roofs

   Lightweight ALUMINUM ALLOY PROFILES flashings slide under existing courses and lock to Galvanized Steel Tubes battens. Stainless standoffs and EPDM washers create a weather-tight seal, while mid- and end-clamps secure 60-cell or 72-cell modules and still leave room for future micro-inverter upgrades.

3. Standing-seam metal roofs

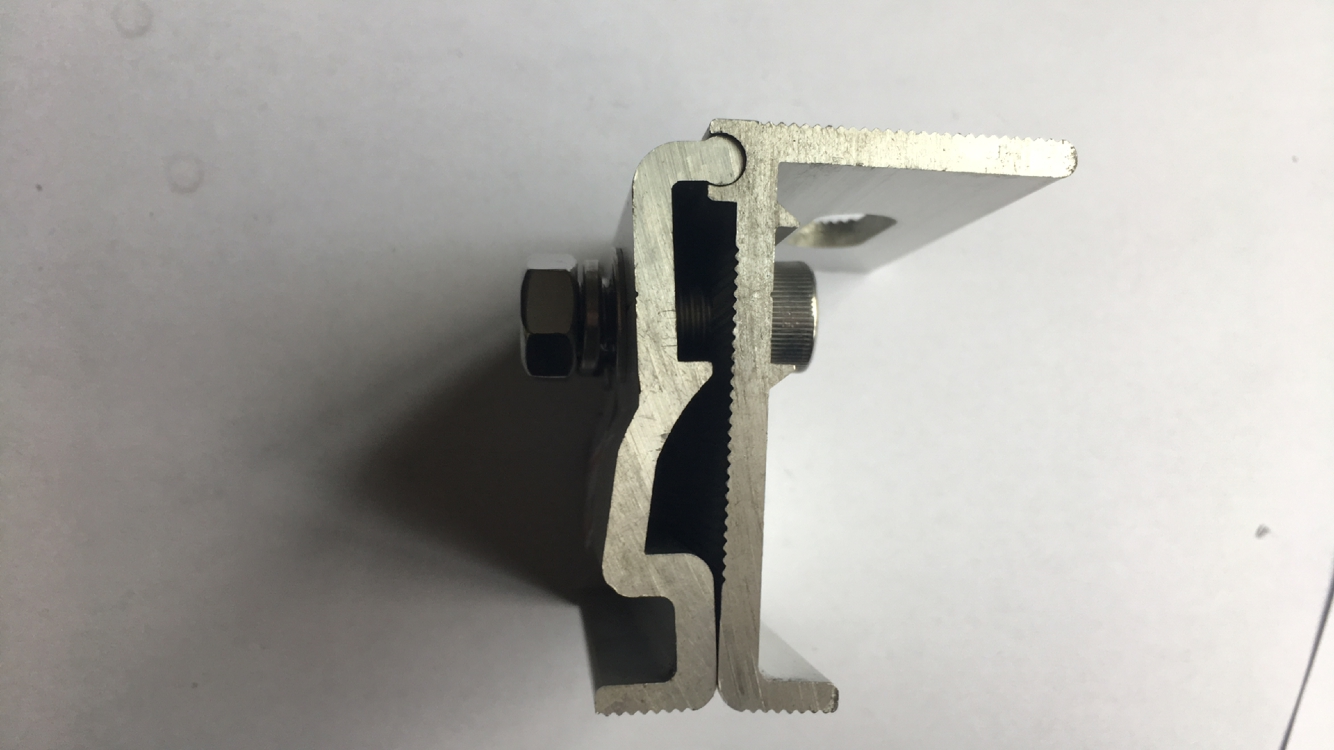

   Non-penetrating seam clamps—die-cast from ALUMINUM ALLOY PROFILES and lined with stainless gripping teeth—snap directly onto the raised seams. The clamp bodies accept Galvanized Steel Tubes or STEEL PROFILES cross rails, forming a rail-less or shared-rail layout that speeds installation and cuts material lists.

4. Industrial skylight retrofits

   Narrow STEEL PROFILES frames are welded around existing skylight curbs. ALUMINUM ALLOY PROFILES clamps then hold bifacial panels above the glazing, maximizing daylight harvesting while adding energy generation. All fasteners are STAINLESS PARTS to endure chemical wash-downs common in food-processing plants.

5. Extreme-climate installations

   In hurricane zones, heavy-walled Galvanized Steel Tubes are paired with ALUMINUM ALLOY PROFILES clamps rated for 170 mph wind. Grounding lugs—machined from STAINLESS PARTS—integrate seamlessly with the array frame, ensuring continuity and lightning protection in a single step.

Across every scenario, the right combination of ALUMINUM ALLOY PROFILES, Galvanized Steel Tubes, STEEL PROFILES, and STAINLESS PARTS delivers a mounting system that installs faster, weighs less, and outlasts the panels it supports.
