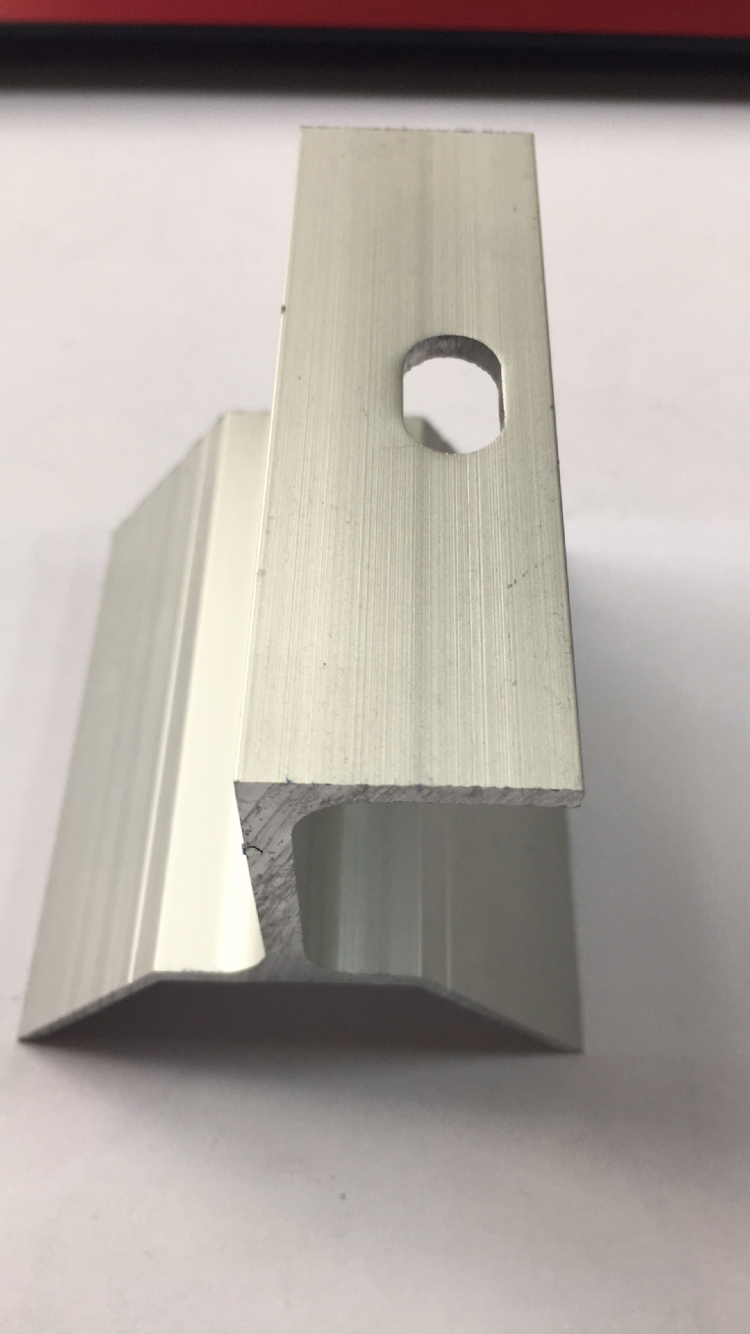

T-shaped rooftop clamps have become core Components For Solar PV Mounting Structures wherever speed, strength, and weather-resilience matter. Machined from 6000-series Aluminum Alloy Profiles and finished with a ≥ 10 µm silver or black anodized layer, each clamp presents a low-profile “T” geometry whose horizontal flange distributes uplift loads across Galvanized Steel Tubes purlins, while its vertical leg accepts STEEL PROFILES rails or direct module frame attachment. All threaded interfaces—bolts, lock-washers, and grounding lugs—are precision STAINLESS PARTS, guaranteeing 25-year corrosion immunity even in salt-spray zones.
Key application scenarios
1. Standing-seam commercial roofs
The clamp’s throat slides over the 1.5 in (38 mm) seam and locks with a single STAINLESS PARTS bolt. A captive EPDM gasket seals the seam while the ALUMINUM ALLOY PROFILES body transfers wind uplift into underlying Galvanized Steel Tubes without roof penetration.
2. Industrial trapezoidal sheet roofs
By adding a galvanized saddle plate, the same clamp anchors to 60 mm high corrugations. STEEL PROFILES stringers span between clamps, letting installers mount 72-cell modules at 10–15° tilt in half the time required by full-rail systems.
3. Residential tile roofs
Tile hooks fabricated from STEEL PROFILES are first screwed to rafters, then the T-clamp bolts through the hook, compressing a stainless washer against the tile surface. This hybrid “hook-clamp” preserves tile integrity while grounding conductors run through the hollow ALUMINUM ALLOY PROFILES arm.
4. Ground-mount retrofits on elevated platforms
On steel carports or canopies framed with Galvanized Steel Tubes, T-clamps mount in pairs along the upper chord. Module rails are eliminated entirely; panels bolt directly to the clamp wings, cutting material freight by 35 %.
Installation workflow
1. Roof audit – verify seam height or rafter spacing; select clamp throat size.
2. Layout – mark clamp positions every 1.0–1.2 m along Galvanized Steel Tubes or rafters.
3. Fastening – drive STAINLESS PARTS self-drilling screws through pre-punched holes; torque to 12 N·m.
4. Rail integration – slide STEEL PROFILES or ALUMINUM ALLOY PROFILES rails into clamp slots, check level, and tighten end caps.
5. Grounding – insert tinned copper braid between clamp and STAINLESS PARTS hardware to maintain electrical continuity per NEC 690.
Selection checklist
• Roof type: standing seam, corrugated, tile, or membrane.
• Load zone: match clamp pull-out rating (≥ 1.2 kN) to local wind & snow maps.
• Material stack: ALUMINUM ALLOY PROFILES for weight savings, STEEL PROFILES for high-load bays, Galvanized Steel Tubes for long-span purlins, STAINLESS PARTS for all fasteners.
• Finish warranty: ensure anodize thickness ≥ 10 µm for coastal or industrial atmospheres.
• Compatibility: confirm clamp slot width accepts 30–50 mm module frames and 40 mm rail flanges.
By integrating ALUMINUM ALLOY PROFILES, Galvanized Steel Tubes, STEEL PROFILES, and STAINLESS PARTS within a single T-shaped interface, installers achieve a faster, lighter, and more aesthetically discreet mounting solution tailored to any rooftop environment.
