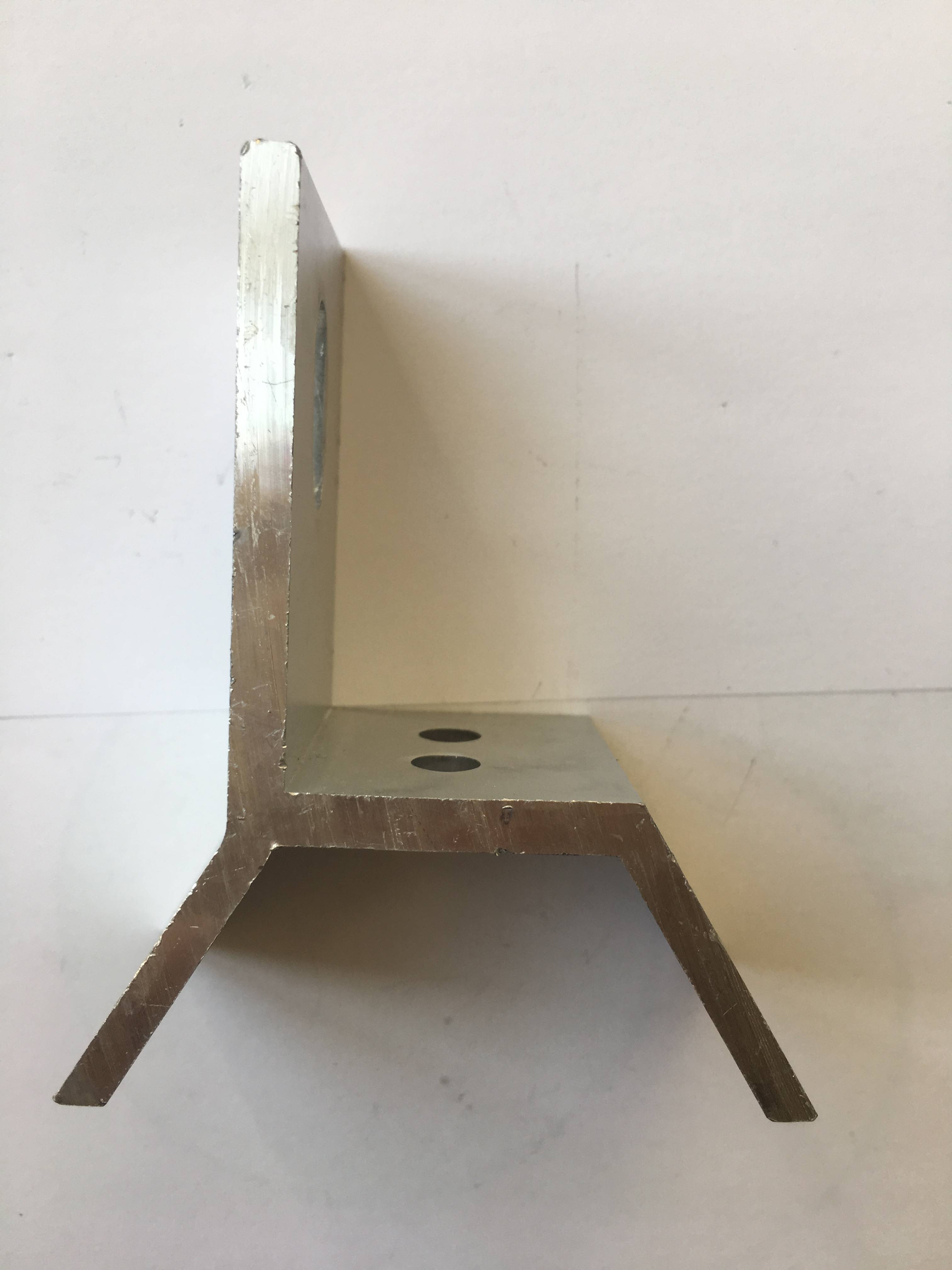

From coastal warehouses to alpine chalets, the aluminum T-clamp has emerged as one of the most versatile Components For Solar PV Mounting Structures. Each unit is extruded from 6000-series Aluminum Alloy Profiles, anodized for 25-year corrosion resistance, and paired with STAINLESS PARTS hardware to create a joint that is both electrically continuous and maintenance-free. The signature “T” geometry—one leg hooks under Galvanized Steel Tubes or STEEL PROFILES purlins, while the opposite leg presents a flat, pre-drilled flange for module frames—eliminates the need for continuous rails and speeds every phase of rooftop deployment.
Applications in the field
1. Standing-seam metal roofs
The vertical leg slides over a 1.5 in seam and locks with a single STAINLESS PARTS bolt, compressing an EPDM gasket against the ALUMINUM ALLOY PROFILES body. The horizontal flange then accepts either a 35 mm or 40 mm module frame, transmitting uplift loads directly into the Galvanized Steel Tubes beneath without roof penetration.
2. Trapezoidal sheet roofs on factories
By adding a galvanized saddle plate, the same clamp anchors to 60 mm high corrugations. STEEL PROFILES stringers span between T-clamps at 1.2 m centers, allowing installers to mount 72-cell modules at 10–15° tilt in half the time required by full-rail systems.
3. Tile roofs on residential estates
Tile hooks fabricated from STEEL PROFILES are first screwed to rafters; the T-clamp then bolts through the hook, compressing a stainless washer against the tile surface. This hybrid “hook-clamp” preserves tile integrity while grounding conductors run through the hollow ALUMINUM ALLOY PROFILES arm.

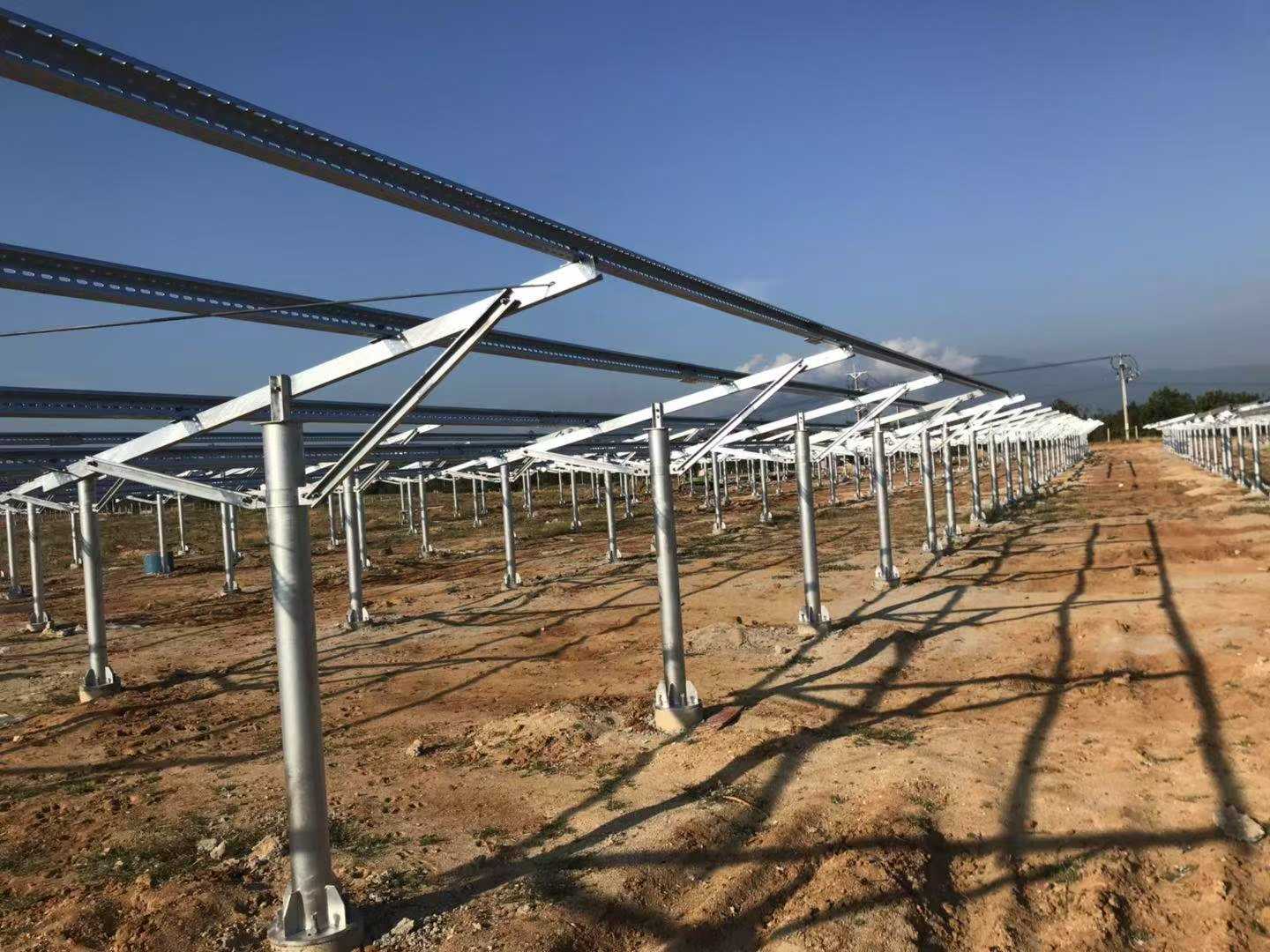

4. Carport canopies framed with Galvanized Steel Tubes
On steel structures where weight is critical, T-clamps mount in pairs along the upper chord. Module rails are eliminated entirely; panels bolt directly to the clamp wings, cutting material freight by 35 % and shaving days off the schedule.
5. Agricultural barns with mixed substrates
Where purlins alternate between wood and Galvanized Steel Tubes, the adjustable throat of the T-clamp accommodates both, ensuring uniform clamp spacing and consistent array aesthetics without field modifications.
Installation sequence
1. Roof audit – verify seam height or rafter spacing; select clamp throat size.
2. Layout – mark clamp positions every 1.0–1.2 m along Galvanized Steel Tubes or rafters.
3. Fastening – drive STAINLESS PARTS self-drilling screws through pre-punched holes; torque to 12 N·m.
4. Rail integration – slide ALUMINUM ALLOY PROFILES or STEEL PROFILES rails into clamp slots, check level, and tighten end caps.
5. Grounding – insert tinned copper braid between clamp and STAINLESS PARTS hardware to maintain electrical continuity per NEC 690.
Selection checklist
• Roof type: standing seam, corrugated, tile, or membrane.
• Load zone: match clamp pull-out rating (≥ 1.2 kN) to local wind & snow maps.
• Material stack: ALUMINUM ALLOY PROFILES for weight savings, STEEL PROFILES for high-load bays, Galvanized Steel Tubes for long-span purlins, STAINLESS PARTS for all fasteners.
• Finish warranty: ensure anodize thickness ≥ 10 µm for coastal or industrial atmospheres.
• Compatibility: confirm clamp slot width accepts 30–50 mm module frames and 40 mm rail flanges.
With this single T-shaped interface, installers fuse ALUMINUM ALLOY PROFILES, Galvanized Steel Tubes, STEEL PROFILES, and STAINLESS PARTS into a lightweight, code-compliant mounting platform that installs faster, looks cleaner, and outperforms traditional rail systems across every rooftop environment.
