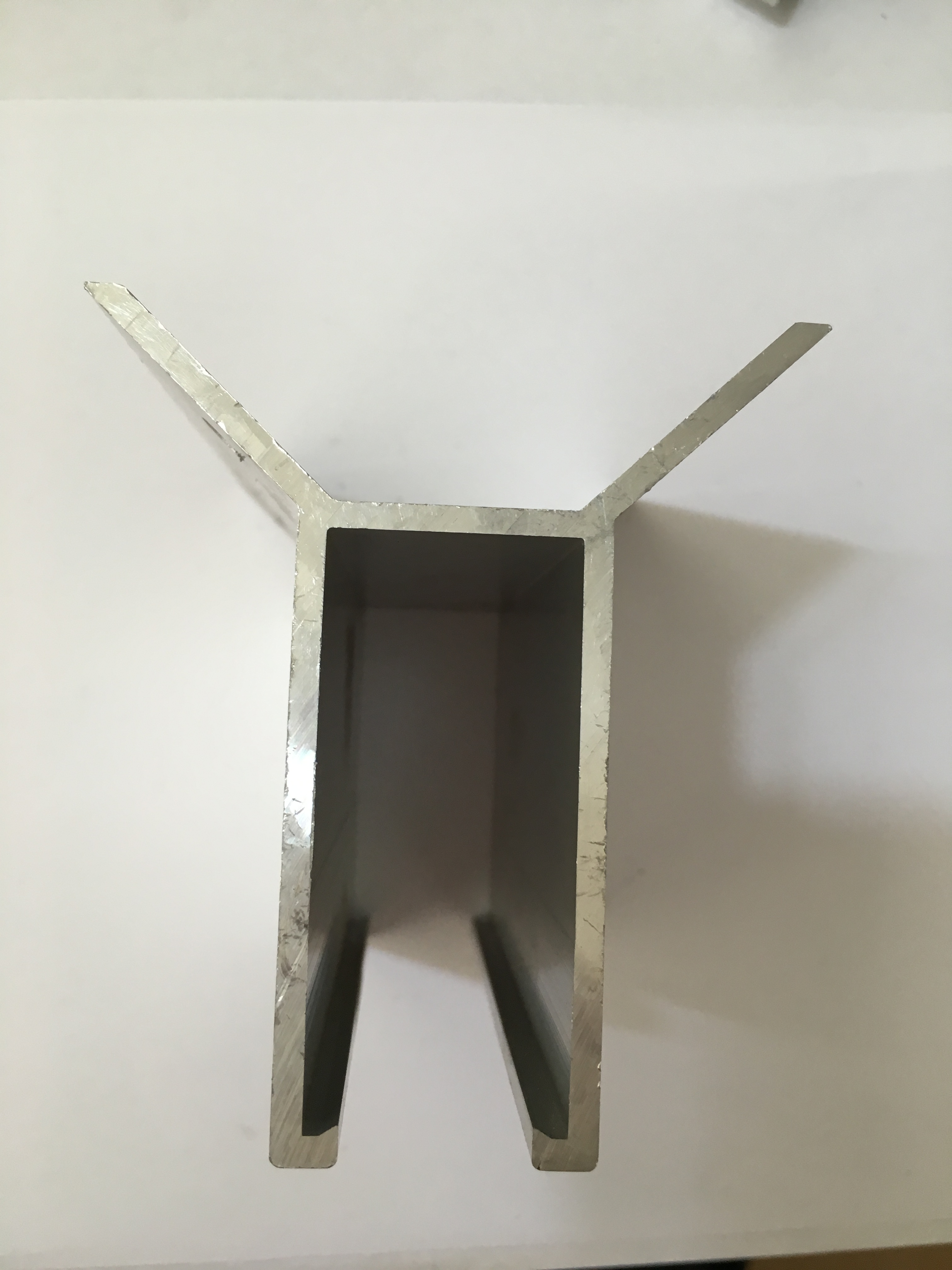

Aluminum alloy Clamps for Solar mounting system

Components and Installation Considerations for Rooftop Solar Mounting Structures

In rooftop solar installations, a well-designed mounting structure is essential for ensuring the stability, safety, and longevity of the solar panels. The key components of these structures include:

1. Clamps: These secure the racking system to the roof, providing a firm connection between the mounting structure and the roof surface. They are often made from durable materials such as Aluminum Alloy Profiles or Black Anodized Profiles to ensure corrosion resistance and strength.

2. Rails: These provide a linear support structure for the solar panels, ensuring they are held in place securely and aligned correctly. Rails are typically constructed from high-quality materials like Galvanized Steel Tubes or Aluminum Alloy Profiles, which offer both strength and durability.

3. Mounting Feet: These components anchor the rails to the roof surface, ensuring the entire mounting structure is stable and secure. They are designed to accommodate various roof types and materials, providing a reliable base for the solar panels.

4. Bolts and Screws: These fasteners are used to connect the various components of the mounting structure together. They are often made from stainless steel or other durable materials to ensure long-term reliability and resistance to corrosion.

When installing a rooftop solar mounting structure, several important factors must be considered to ensure a successful and safe installation:

1. Proper Selection of Clamp Type: The type of clamp used should be compatible with the roof material, whether it is tile, metal, or shingle. This ensures a secure and stable connection without causing damage to the roof.

2. Correct Torque on Bolts and Screws: Ensuring the correct torque on bolts and screws is crucial to avoid over-tightening or under-tightening, which can compromise the structural integrity of the mounting system. Using a torque wrench and following manufacturer guidelines is highly recommended.

3. Compliance with Local Building Codes and Manufacturer Guidelines: Adhering to local building codes and following the manufacturer’s installation instructions are essential for ensuring the safety and compliance of the solar mounting structure. This includes considerations for wind loads, snow loads, and other environmental factors.

4. Proper Sealing to Prevent Water Infiltration: Proper sealing around clamps and mounting feet is critical to prevent water infiltration, which can lead to roof leaks and damage. Using appropriate sealants and gaskets ensures the mounting structure is watertight and protects the roof from potential damage.

In summary, the components of a rooftop solar mounting structure, including clamps, rails, mounting feet, and fasteners, are designed to provide a robust and reliable framework for solar panels. By selecting the appropriate materials, such as Galvanized Steel Tubes, Aluminum Alloy Profiles, and Black Anodized Profiles, and following best practices during installation, these structures can ensure the long-term performance and safety of solar installations. Compliance with local building codes and manufacturer guidelines, along with proper sealing techniques, further enhances the durability and reliability of the STEEL SOLAR MOUNTING SYSTEM and BULIDING ALUMINUM PARTS used in rooftop applications.
